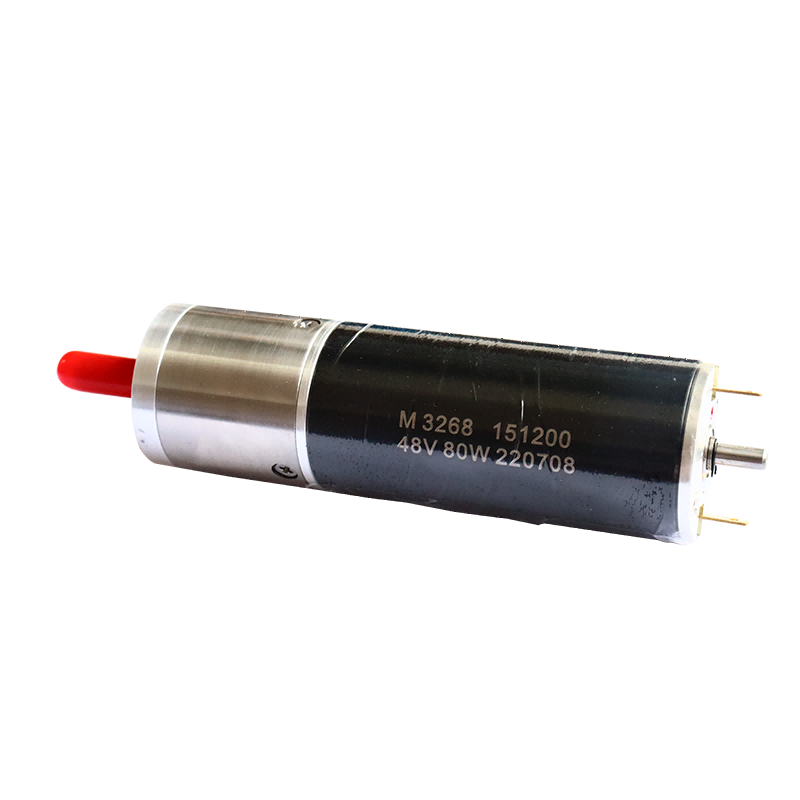

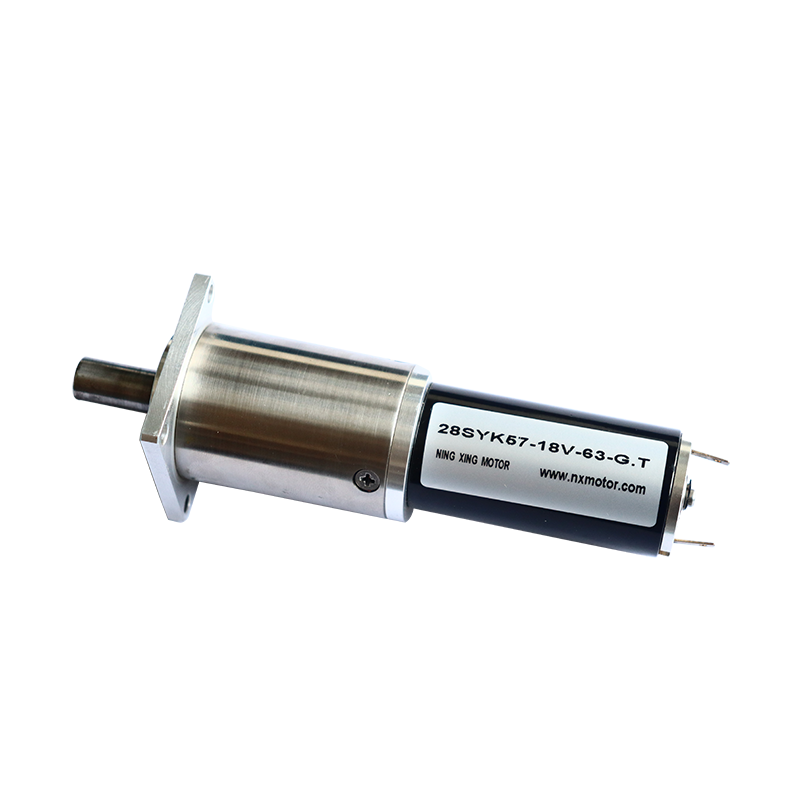

Planetary Gearhead 32mm

Ningbo Ruixing Motor Co.,LTD is China manufacturer & supplier who mainly produces Planetary Gearhead 32mm with many years of experience. Hope to build business relationship with you. Planetary gearheads offer several advantages, such as high torque output, low backlash, and high efficiency. They are suitable for various applications, including robotics, medical devices, automotive and aerospace components, precision machinery, and camera gimbals.

ພາລາມິເຕີດ້ານວິຊາການ
ເສັ້ນຜ່າສູນກາງເກຍ		ມມ		32
Bearing of Shaft		ທາງເລືອກ/-		ລູກປືນ
ການເກັບກູ້ radial		ມມ		≤0.1
ການເກັບກູ້ຕາມແກນ		ມມ		≤0.2
ຄວາມໄວການປ້ອນຂໍ້ມູນການອະນຸຍາດ		rpm		≤10,000
ຊ່ວງອຸນຫະພູມທີ່ແນະນຳ		℃		-20 ເຖິງ +125
ກໍາລັງຕິດຕັ້ງການອະນຸຍາດ		N		≤120
Load Axial		N		≤80
Radial Load		N		≤100
ຄໍາຮ້ອງສະຫມັກທົ່ວໄປ
ອຸປະກອນການແພດ		ຜະລິດຕະພັນດິຈິຕອນ		UAV		ອັດຕະໂນມັດອຸດສາຫະກໍາ
ຂໍ້​ມູນ​ຜະ​ລິດ​ຕະ​ພັນ​
1		ເວທີ	1	2	3		4		5
2		ຈໍານວນຄໍາສັ່ງ	1232001	1232008	1232036	1232071	1232137	1232202	1232389	1232540
3		ອັດຕາສ່ວນ	3.11	9.68	30.11	71.68	159.42	297.66	693.79	1428.77
4		ຈໍານວນຄໍາສັ່ງ	1232004	1232017	1232047	1232077	1232146	1232221	1232402	1232600
5		ອັດຕາສ່ວນ	4.00	14.93	46.46	80.14	178.23	344.06	765.21	1846.41
6		ຈໍານວນຄໍາສັ່ງ	1232005	1232022	1232051	1232085	1232170	1232244	1232423	1232663
7		ອັດຕາສ່ວນ	4.80	19.20	51.24	92.16	223.00	412.16	855.52	2548.04
8		ຈໍານວນຄໍາສັ່ງ		1232027	1232061	1232095	1232188	1232270	1232454	1232698
9		ອັດຕາສ່ວນ		23.04	62.01	110.59	266.24	530.84	988.89	3174.00
1		L1 (ມມ)	31.6	37.9	44.2		50.5		56.8
2		L(ມມ)	31.6	37.9	44.2		50.5		56.8
3		ແຮງບິດ(ນມ)	1.0	1.5	2.5		3		5
4		Stall Torque(ນມ)	2.0	3.0	5		6		7.5
5		ປະສິດທິພາບສູງສຸດ(%)	90	81	73		65		59
6		ນ້ຳໜັກ(g)	125	147	169		191		213
7		No-Load Backlash(°)	1	1.5	1.5		2		2
