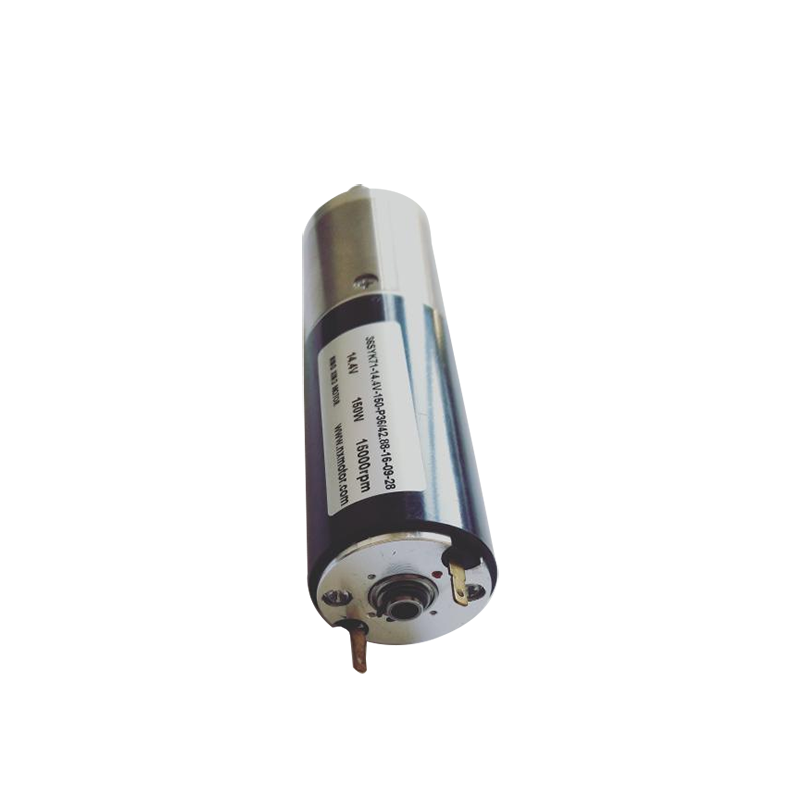

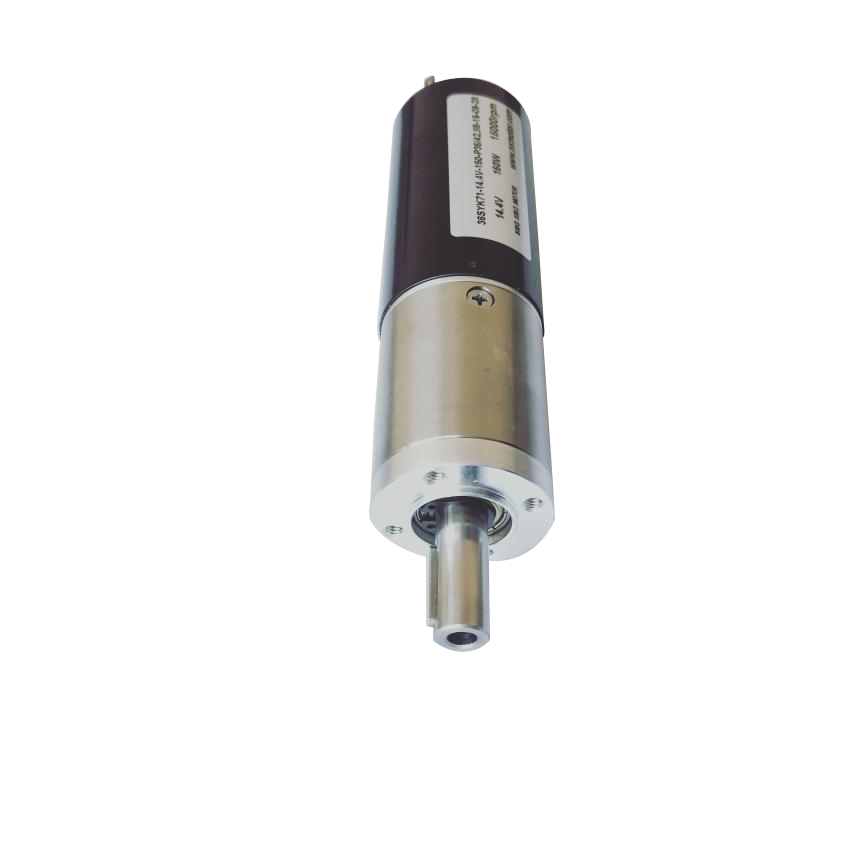

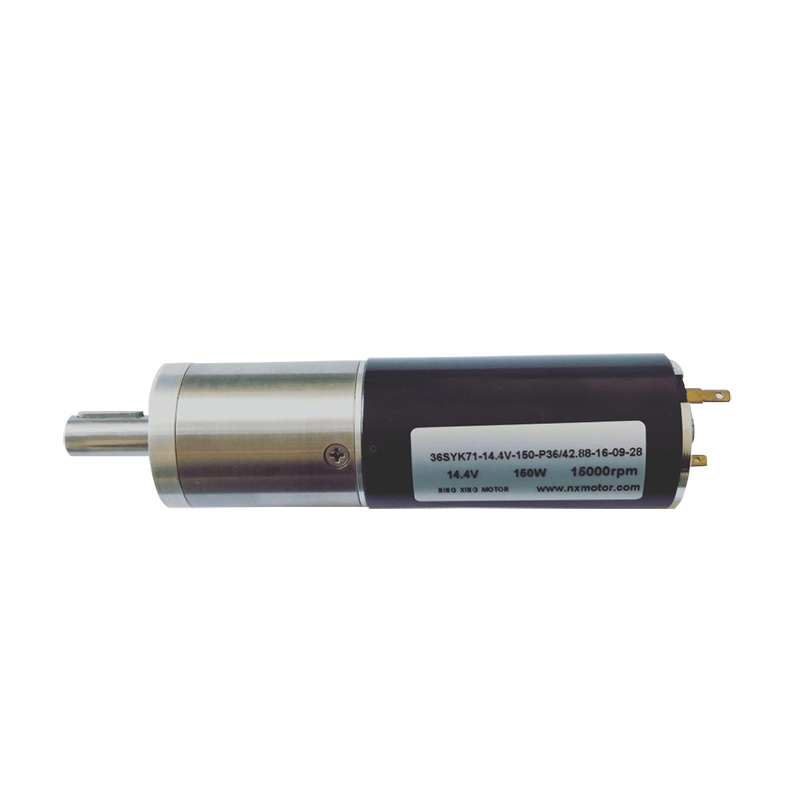

Planetary Gearhead 36mm

As the professional manufacture, we would like to provide you Ruixing Planetary Gearhead 36mm. And we will offer you the best after-sale service and timely delivery. The 36mm planetary gearhead, in particular, is often used in applications that require a high output torque, such as:Industrial automation, Material handling, Printing machinery, Food processing equipment, Packaging machinery. In these applications, the 36mm planetary gearhead can provide precise motion control and increased torque output, improving the efficiency and reliability of the machinery.

ພາລາມິເຕີດ້ານວິຊາການ
ເສັ້ນຜ່າສູນກາງເກຍ		ມມ		36
Bearing of Shaft		ທາງເລືອກ/-		ລູກປືນ
ການເກັບກູ້ radial		ມມ		≤0.1
ການເກັບກູ້ຕາມແກນ		ມມ		≤0.2
ຄວາມໄວການປ້ອນຂໍ້ມູນການອະນຸຍາດ		rpm		≤10,000
ຊ່ວງອຸນຫະພູມທີ່ແນະນຳ		℃		-20 ເຖິງ +125
ກໍາລັງຕິດຕັ້ງການອະນຸຍາດ		N		≤120
Load Axial		N		≤80
Radial Load		N		≤100
ຄໍາຮ້ອງສະຫມັກທົ່ວໄປ
ອຸປະກອນການແພດ		ຜະລິດຕະພັນດິຈິຕອນ		UAV		ອັດຕະໂນມັດອຸດສາຫະກໍາ
ຂໍ້​ມູນ​ຜະ​ລິດ​ຕະ​ພັນ​
1		ເວທີ	1	2	3		4		5
2		ຈໍານວນຄໍາສັ່ງ	1236002	1236010	1236035	1236073	1236097	1236159	1236274	1236402
3		ອັດຕາສ່ວນ	3.75	14.06	52.73	141.56	197.75	474.27	114,844	3082.77
4		ຈໍານວນຄໍາສັ່ງ	1236004	1236014	1236042	1236077	1236109	1236182	1236303	1236432
5		ອັດຕາສ່ວນ	4.67	17.50	65.63	169.00	246.09	660.59	1429.17	4293.85
6		ຈໍານວນຄໍາສັ່ງ	1236006	1236019	1236051		1236124	1236198	1236333	1236449
7		ອັດຕາສ່ວນ	6.50	21.78	81.67		306.25	920.11	1778.52	5980.72
8		ຈໍານວນຄໍາສັ່ງ		1236024	1236061		1236142		1236362
9		ອັດຕາສ່ວນ		30.33	101.63		381.11		2213.27
1		L(ມມ)	36	43.3	50.6		57.9		65.2
2		ແຮງບິດ(ນມ)	4.0	8.0	16.0		16.0		20
3		Stall Torque(ນມ)	5.0	12.0	25.0		25.0		30
4		ປະສິດທິພາບສູງສຸດ(%)	90	81	73		65		59
5		ນ້ຳໜັກ(g)	210	245	280		315		350
6		No-Load Backlash(°)	0.8	1.0	1.0		1.0		1.2
